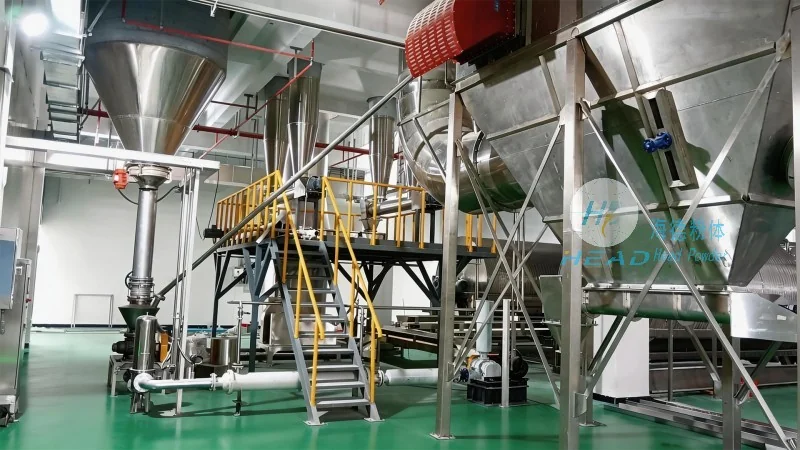

In industrial production, the pneumatic conveying system for lime powder is a key equipment for efficiently and safely transporting materials. Proper design of such a system is crucial for ensuring production efficiency, reducing operating costs, and safeguarding operator safety. This article will explore the design considerations for the pneumatic conveying system of lime powder, providing professional guidance for relevant engineering projects.

System Type Selection: Considerations for Positive and Negative Pressure

The pneumatic conveying system is mainly divided into positive pressure and negative pressure types. Positive pressure systems push material forward by sending compressed air into the conveying pipeline through a fan, suitable for short-distance, high-quantity scenarios. Negative pressure systems draw material in by extracting air from the end of the conveying pipeline, creating a negative pressure, suitable for long-distance, low-quantity conveying. For lime powder, the system type selection needs to be comprehensively evaluated based on actual conveying distance, quantity, and material properties. For example, if the conveying distance exceeds 100 meters and the quantity is large, a positive pressure system may be more appropriate; if the conveying distance is short or the quantity is small, a negative system may be more economical. Shandong HeadPowder Engineering Co., Ltd. (hereinafter referred to as HeadPowder) will, in the design process, analyze factors such as material particle size, density, moisture, and conveying distance according to customer's specific needs, selecting the optimal system type to ensure system operation is stable and efficient.

Equipment Selection: The Key Role of Fans and Separators

The fan is the core power equipment of the pneumatic conveying system, and its performance directly affects the system's conveying capacity and efficiency. For lime powder conveying, centrifugal or roots fans are typically chosen. Centrifugal fans have characteristics of large flow rate and stable pressure, suitable for positive systems; roots fans are suitable for negative systems, providing sufficient negative pressure to suck material. The fan selection needs to consider conveying quantity, conveying distance, and material friction coefficient to ensure the fan can provide sufficient pressure and flow rate. In addition, the separator is an important equipment for the pneumatic conveying system, used to separate the conveyed material from air. For lime powder, the separator should have efficient separation capability to avoid material deposition or blockage in the pipeline. HeadPowder will select an appropriate separator according to the material's characteristics (such as particle diameter, density, fluidity), for example, cyclone separators or bag-type dust collectors, to ensure efficient material separation, reduce system blockage risk, and improve system reliability.

Pipeline Design: Optimization of Pipe Diameter, Bends, and Valves

The design of the conveying pipeline directly affects the performance of the pneumatic conveying system. The selection of pipe diameter needs to be determined based on conveying quantity, material particle size, and air velocity. Typically, the air velocity inside the pipeline should be controlled within a certain range, as too high a velocity will cause material wear on the pipeline, while too low will lead to material deposition. For lime powder, the air velocity in the pipeline is usually recommended to be between 15-25 m/s to balance conveying efficiency and pipeline life. The design of bends and valves is also important, as too many bends increase system resistance and reduce conveying efficiency, so the number of bends should be minimized and bends with larger curvature radii should be chosen. At the same time, the selection of valves should consider operation convenience and sealing performance to avoid material leakage. HeadPowder will, in pipeline system design, determine the optimal pipe diameter and air velocity through fluid dynamics calculations, optimize the layout of bends, and select appropriate valve types to ensure the pipeline system has the least resistance, material conveying is smooth, and energy consumption and maintenance costs are reduced.

Air Source Selection: Matching Pressure and Flow Rate

The selection of the air source is a key part of the pneumatic conveying system design. The fan's pressure and flow rate need to match the system's requirements. For positive systems, the fan needs to provide sufficient pressure to overcome pipeline resistance, material friction, and conveying height; for negative systems, the fan needs to provide sufficient negative pressure to suck material. The conveying of lime powder usually requires high pressure, so the fan's pressure selection needs to be calculated based on conveying distance and material properties. For example, the longer the conveying distance, the higher the required pressure. HeadPowder will select the fan equipment based on the customer's specific conveying distance, conveying quantity, and material properties, calculating the required fan pressure and flow rate to ensure the system operates stably under rated pressure and flow rate, avoiding conveying interruption or material deposition due to insufficient air source.

Safety Measures: Explosion and Dust Prevention

Lime powder is an explosive and flammable material, and during the pneumatic conveying process, if the system is not designed properly, it may cause dust explosion or fire accidents. Therefore, safety measures are an indispensable part of the design process. First, the system should use explosion-proof fans and explosion-proof electrical equipment to prevent electrical sparks from causing explosions. Second, the pipeline system should maintain good sealing to avoid dust leakage into the air and cause dust explosion risk. In addition, the system should be equipped with pressure control devices to prevent excessive pressure in the pipeline from causing equipment damage or material leakage. HeadPowder, in designing the pneumatic conveying system for lime powder, will strictly follow safety standards, use explosion-proof equipment, optimize pipeline sealing design, and set up pressure control devices to ensure system operation is safe and reliable, meeting industrial safety standards and providing production safety assurance for customers.
